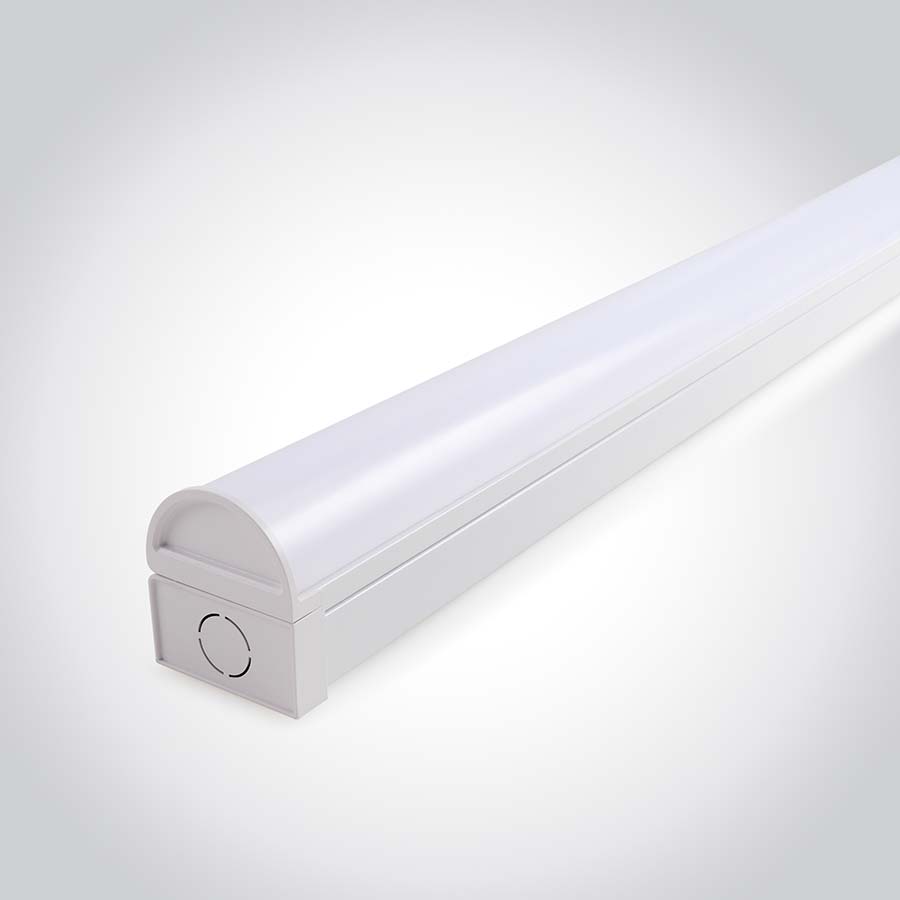

    IP20 Batten 1001.1022

    IP20 Batten 1001.1022

    Line Drawing
    Downloads
    Product PDF Product PDF

    Physical Specification

    +
    Code1001.1022.011001.1022.021001.1022.031001.1022.04
    Product Dimensions (mm)  L600×W60×H69  mmL1200×W60×H69mmL1500×W60×H69mmL1800×W60×H69mm
    Finish/ColorGloss WhiteGloss WhiteGloss WhiteGloss White
    MaterialPC+IronPC+IronPC+IronPC+Iron
    On/Off SwitchNNNN
    Cable Length (m)NNNN
    Cable Spec.NNNN
    PlugNNNN
    Terminal Blockquick fit quick fit quick fit quick fit
    Accessoriesscrew,expansion boltsscrew,expansion boltsscrew,expansion boltsscrew,expansion bolts
    InstallationSurface mountedSurface mountedSurface mountedSurface mounted
    Class 1111


    Electrical Characteristics

    +
    Code1001.1022.011001.1022.021001.1022.031001.1022.04
    Total Power Consumption Wattage/On-Mode Power 18/11
    		36/22
    		50/30
    		60/36
    Product Voltage220-240220-240220-240220-240
    Herts50/6050/6050/6050/60
    IP RatingIP20IP20IP20IP20
    Luminous Flux2430/1480
    		5220/3190
    		7250/4350
    		8700/5220
    Kelvin 3000K/4000K/6000K3000K/4000K/6000K3000K/4000K/6000K3000K/4000K/6000K
    LED Package TypeSMDSMDSMDSMD
    LPW@4000K135145145145
    Lamp/Bulb Specification (if not LED)N/AN/AN/AN/A
    Lamp/Bulb included?N/AN/AN/AN/A
    SDCM＜6＜6＜6＜6
    CRI＞80＞80＞80＞80
    Power Factor>0.5>0.5>0.9>0.9
    UGR>19>19>19>19


    Function

    +
    Code1001.1022.011001.1022.021001.1022.031001.1022.04
    LinkableYYYY
    CCT function Optional Optional Optional Optional
    Multi-section Power Optional Optional Optional Optional
    Dimmable OptionalOptionalOptionalOptional
    SensorOptionalOptionalOptionalOptional
    EmergencyOptionalOptionalOptionalOptional
    Battery Spec.N/AN/AN/AN/A
