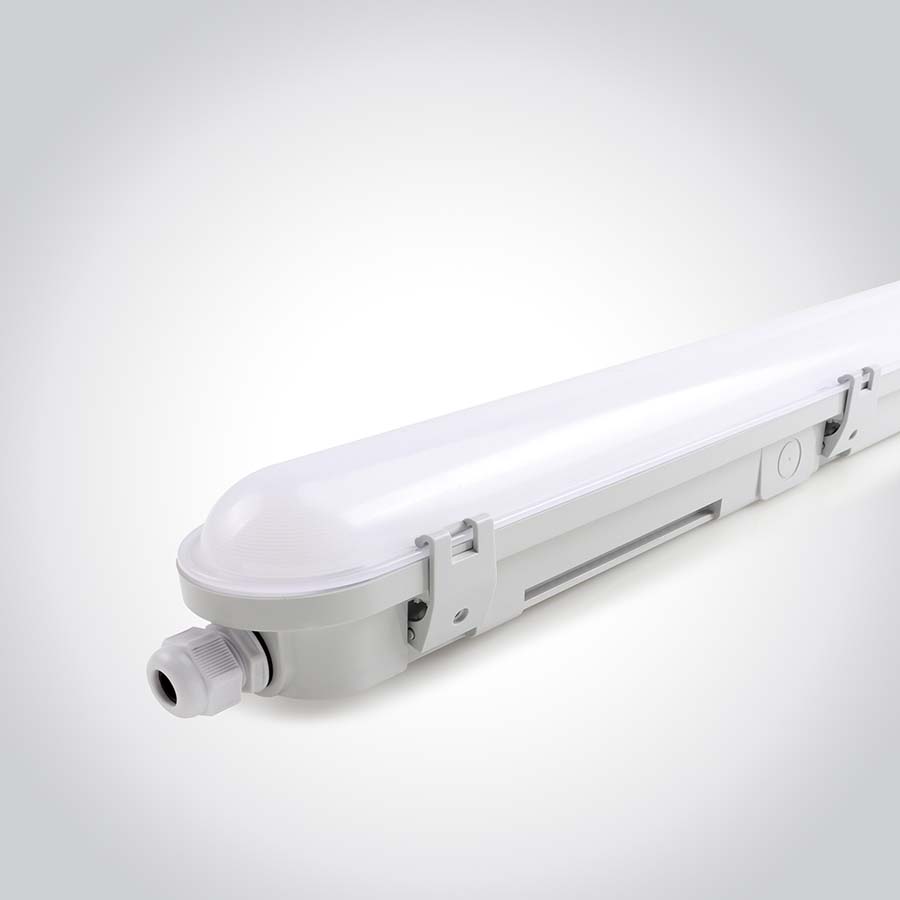

    IP65 Batten 1003.1015

    IP65 Batten 1003.1015

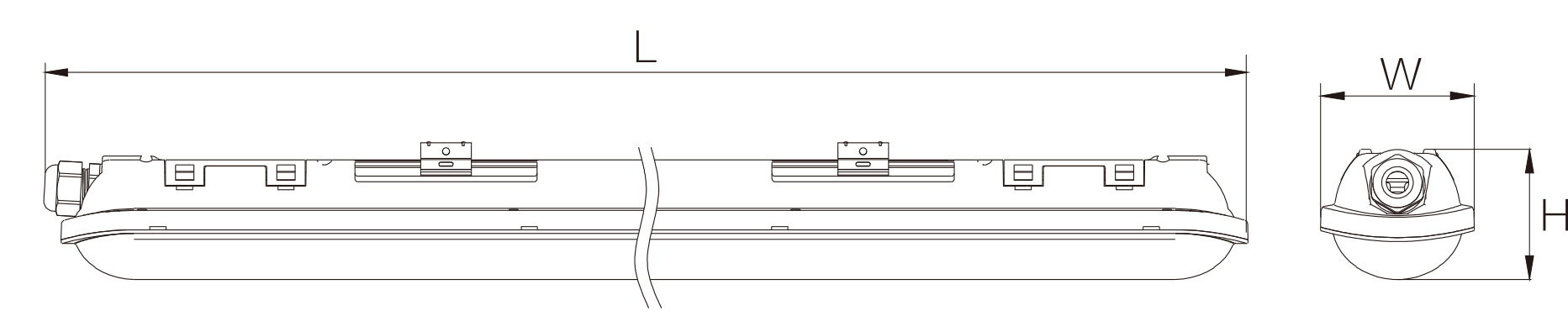

    Line Drawing
    Downloads
    Product PDF Product PDF

    Physical Specification

    +
    Code1003.1015
    Product Dimensions (mm)L653×W128×H90mm
    Finish/ColorGrey+Opal finished
    MaterialPC+Iron
    On/Off SwitchN
    Cable Length (m)N
    Cable Spec.N
    PlugN
    Terminal Blockquick fit
    Accessoriesscrew,expansion bolts,fixing brackets
    InstallationSurface mounted
    Class 1


    Electrical Characteristics

    +
    Code1003.1015
    Total Power Consumption Wattage/On-Mode Power 20-40
    Product Voltage220-240
    Herts50/60
    IP RatingIP65
    Luminous Flux1500-4000
    Kelvin 3000K/4000K/6000K
    LED Package TypeSMD
    Lamp/Bulb Specification (if not LED)N/A
    Lamp/Bulb included?N/A
    SDCM＜6
    CRI＞80
    Power Factor>0.5
    UGR>19


    Function

    +
    Code1003.1015
    LinkableY
    CCT function Optional
    Multi-section Power Optional
    Dimmable Optional
    SensorOptional
    EmergencyOptional
    Battery Spec.N/A
