    IP65 Batten 1003.1011 IP65 Batten 1003.1011

    IP65 Batten 1003.1011

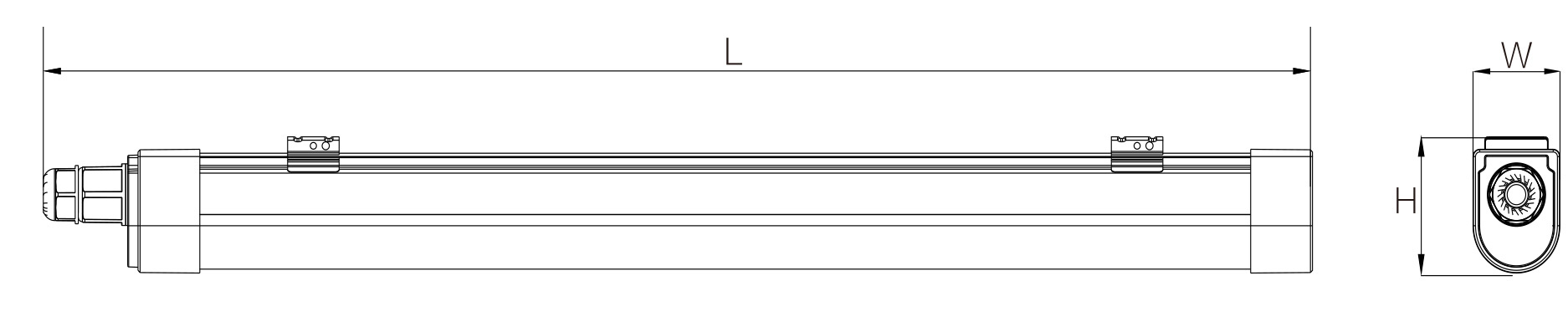

    Line Drawing
    Downloads
    Product PDF Product PDF

    Physical Specification

    +
    Code1003.1011.011003.1011.021003.1011.03
    Product Dimensions (mm)L600×W48×H60mmL1200×W48×H60mmL1500×W48×H60mm
    Finish/ColorOpal +Gloss WhiteOpal +Gloss WhiteOpal +Gloss White
    MaterialPCPCPC
    On/Off SwitchNNN
    Cable Length (m)NNN
    Cable Spec.NNN
    PlugNNN
    Terminal Blockquick fit quick fit quick fit
    Accessoriesscrew,expansion bolts,fixing bracketsscrew,expansion bolts,fixing bracketsscrew,expansion bolts,fixing brackets
    InstallationSurface mountedSurface mountedSurface mounted
    Class 222


    Electrical Characteristics

    +
    Code1003.1011.011003.1011.021003.1011.03
    Total Power Consumption Wattage/On-Mode Power 18/936/1850/25
    Product Voltage220-240220-240220-240
    Herts50/6050/6050/60
    IP RatingIP65IP65IP65
    Luminous Flux2160/10804320/21606000/3000
    Kelvin 3000K/4000K/6000K3000K/4000K/6000K3000K/4000K/6000K
    LED Package TypeSMDSMDSMD
    Lamp/Bulb Specification (if not LED)N/AN/AN/A
    Lamp/Bulb included?N/AN/AN/A
    SDCM＜6＜6＜6
    CRI＞80＞80＞80
    Power Factor>0.5>0.9>0.9
    UGR>19>19>19


    Function

    +
    Code1003.1011.011003.1011.021003.1011.03
    LinkableYYY
    CCT function Y Y Y
    Multi-section Power Y Y Y
    Dimmable  N N N
    Sensor N N N
    Emergency N N N
    Battery Spec.N/AN/AN/A
