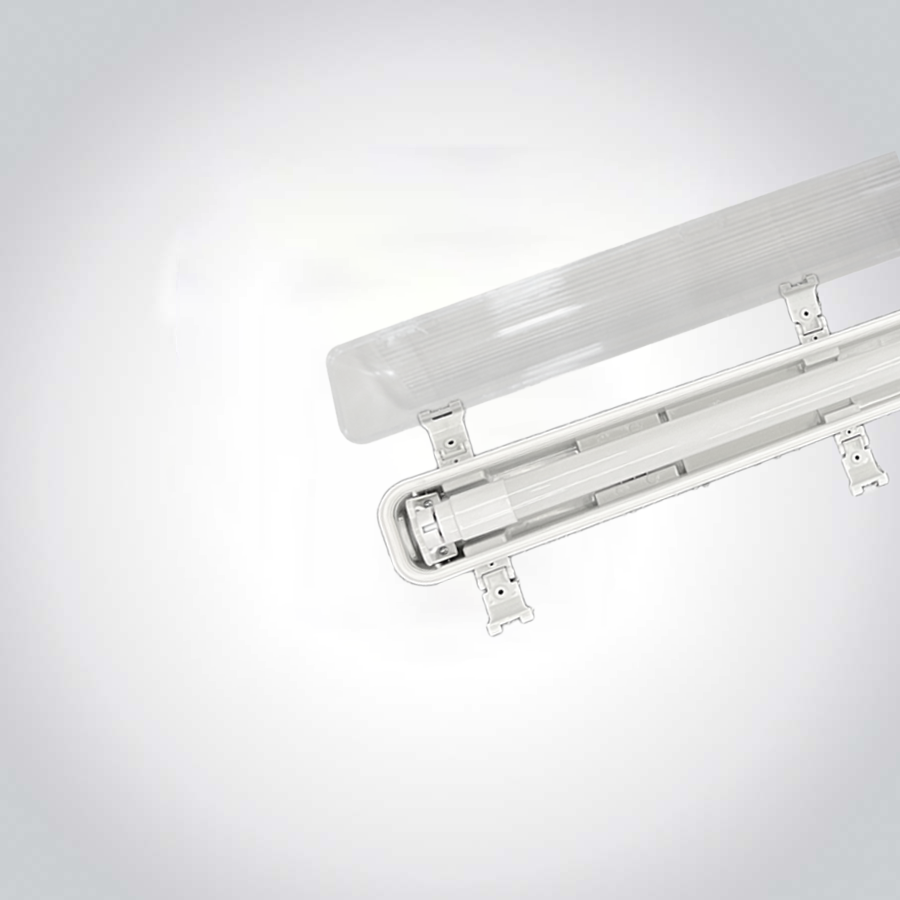

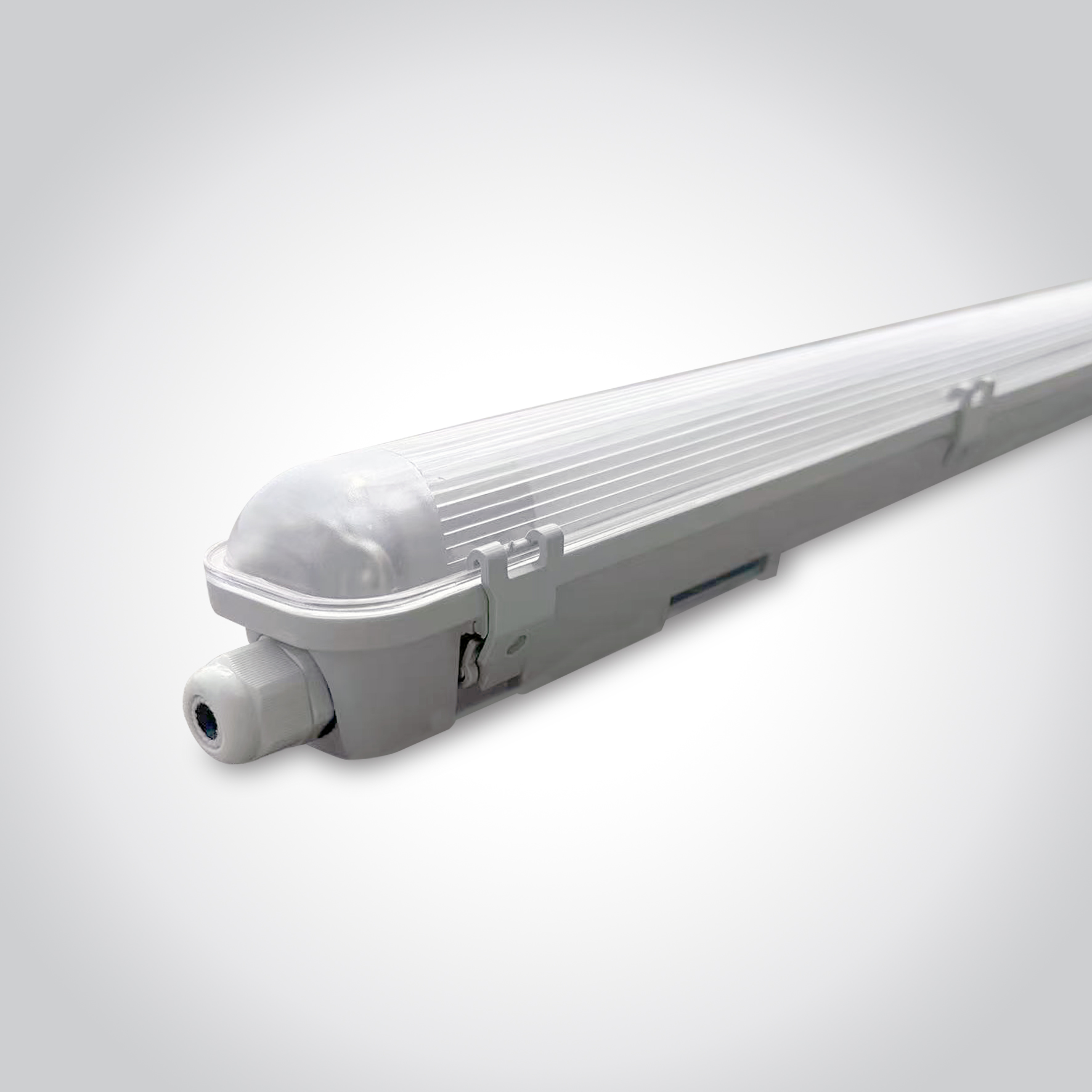

    IP65 Batten 1003.1023 IP65 Batten 1003.1023

    IP65 Batten 1003.1023

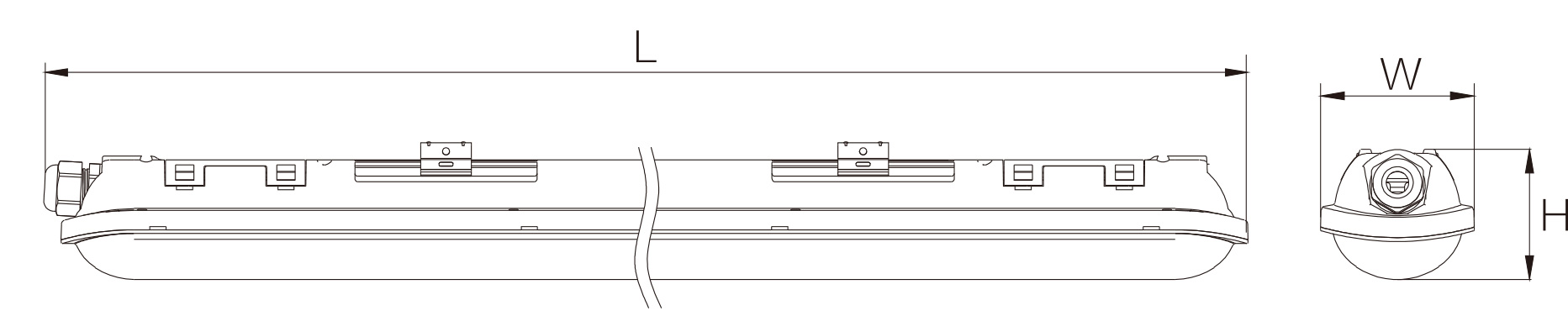

    Line Drawing
    Downloads
    Product PDF Product PDF

    Physical Specification

    +
    Code1003.1023.011003.1023.021003.1023.03
    Product Dimensions (mm)L653×W64×H64mmL1263×W64×H64mmL1563×W64×H64mm
    Finish/ColorGreyGreyGrey
    MaterialPCPCPC
    On/Off SwitchNNN
    Cable Length (m)NNN
    Cable Spec.NNN
    PlugNNN
    Terminal Block3-way Terminal Block3-way Terminal Block3-way Terminal Block
    Accessoriesscrew,expansion bolts,fixing bracketsscrew,expansion bolts,fixing bracketsscrew,expansion bolts,fixing brackets
    InstallationSurface mountedSurface mountedSurface mounted
    Class 111


    Electrical Characteristics

    +
    Code1003.1023.011003.1023.021003.1023.03
    Total Power Consumption Wattage/On-Mode Power 91823
    Product Voltage220-240220-240220-240
    Herts50/6050/6050/60
    IP RatingIP65IP65IP65
    Luminous Flux81016202160
    Kelvin 3000K/4000K/6500K3000K/4000K/6500K3000K/4000K/6500K
    LED Package Type


    Lamp/Bulb Specification (if not LED)T8 LED tubeT8 LED tubeT8 LED tube
    Lamp/Bulb included?N/AN/AN/A
    SDCM＜6＜6＜6
    CRI＞80＞80＞80
    Power Factor>0.5>0.5>0.5
    UGR>19>19>19



    Function

    +
    Code1003.1023.011003.1023.021003.1023.03
    LinkableYYY
    CCT functionNNN
    Multi-section PowerNNN
    Dimmable NNN
    SensorOptionalOptionalOptional
    EmergencyNNN
    Battery Spec.N/AN/AN/A
    Others ( Solar etc…)Iron reflector is optionalIron reflector is optionalIron reflector is optional
