• Products > Counter & Cabinet > Counter & Cabinet Lamp 1005.1012

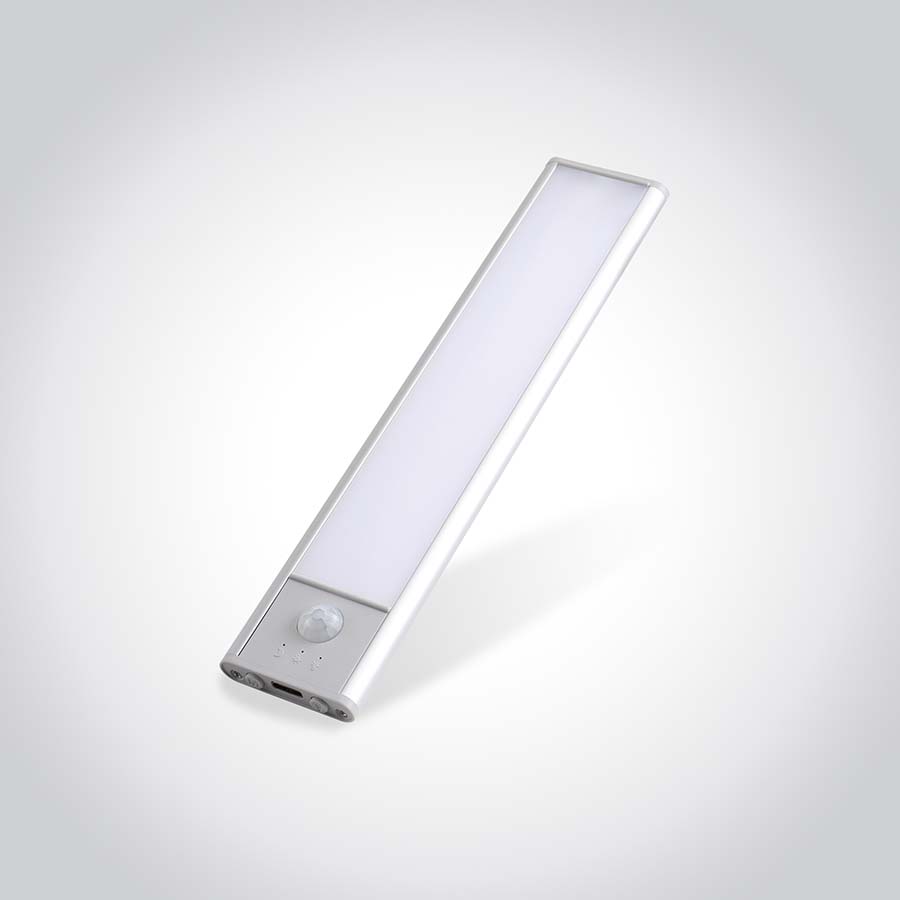

    Counter & Cabinet Lamp 1005.1012 Counter & Cabinet Lamp 1005.1012

    Counter & Cabinet Lamp 1005.1012

    Line Drawing
    Downloads
    Product PDF Product PDF

    Physical Specification

    +
    Code1005.1012.011005.1012.02
    Product Dimensions (mm) LxWxH:200x40x10 LxWxH:315x40x10
    Finish/ColorSilverSilver
    MaterialAluminumAluminum
    On/Off SwitchSensor Switch/Slide SwitchSensor Switch/Slide Switch
    Cable Length (m)0.15m0.15m
    Cable Spec.USB cableUSB cable
    PlugType-CType-C
    Terminal BlockNN
    Accessoriesself-adhesive mounting kitself-adhesive mounting kit
    InstallationSurface mountedSurface mounted
    Class IIIIII

    Electrical Characteristics

    +
    Code1005.1012.011005.1012.02
    Total Power Consumption Wattage/On-Mode Power Max.1.5WMax.2W
    Product VoltageDC 5VDC 5V
    Herts50/6050/60
    IP RatingIP20IP20
    Luminous FluxMax.100lmMax.160lm
    Kelvin 3000K/4000K/6000K3000K/4000K/6000K
    LED Package TypeSMDSMD
    Lamp/Bulb Specification (if not LED)N/AN/A
    Lamp/Bulb included?N/AN/A
    SDCM＜6＜6
    CRI＞80＞80
    Power Factor>0.5>0.5
    UGRN/AN/A

    Function

    +
    Code1005.1012.011005.1012.02
    LinkableN/AN/A
    CCT functionN/AN/A
    Multi-section PowerN/AN/A
    Dimmable N/AN/A
    SensorYY
    EmergencyN/AN/A
    Battery Spec.3.7V 1200mAh3.7V 1500mAh
