• Products > Downlight > Downlight 1008.1005

    Downlight 1008.1005 Downlight 1008.1005

    Downlight 1008.1005

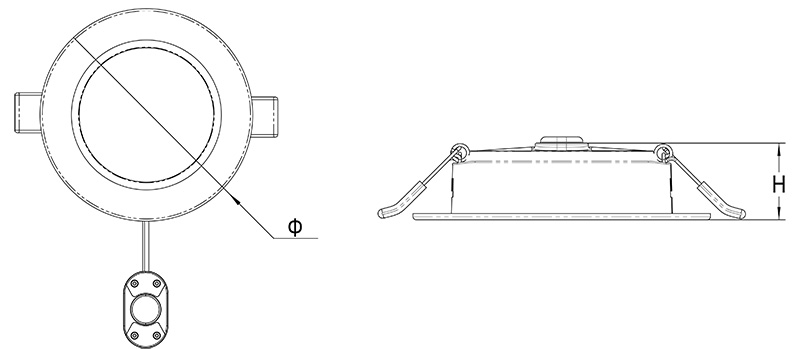

    Line Drawing
    Downloads
    Product PDF Product PDF

    Physical Specification

    +
    Code1008.1005.011008.1005.021008.1005.031008.1005.041008.1005.05
    Product Dimensions (mm)Φ95×H26mmΦ120×H26mmΦ145×H26mmΦ170×H26mmΦ220×H26mm
    Finish/ColorWhiteWhiteWhiteWhiteWhite
    MaterialPCPCPCPCPC
    On/Off SwitchNNNNN
    Cable Length (m)12cm12cm12cm12cm12cm
    Cable Spec.H03VVH2-F 2×0.75mm²H03VV-F 2×0.75mm²H03VV-F 2×0.75mm²H03VV-F 2×0.75mm²H03VV-F 2×0.75mm²
    PlugNNNNN
    Terminal BlockJunction boxJunction boxJunction boxJunction boxJunction box
    InstallationRecessedRecessedRecessedRecessedRecessed
    Class 22222

    Electrical Characteristics

    +
    Code1008.1005.011008.1005.021008.1005.031008.1005.041008.1005.05
    Total Power Consumption Wattage/On-Mode Power 59121824
    Product Voltage220-240220-240220-240220-240220-240
    Herts50/6050/6050/6050/6050/60
    IP RatingIP20IP20IP20IP20IP20
    Luminous Flux500900120018002400
    Kelvin 3000K/4000K/6000K3000K/4000K/6000K3000K/4000K/6000K3000K/4000K/6000K3000K/4000K/6000K
    LED Package TypeSMDSMDSMDSMDSMD
    Lamp/Bulb Specification (if not LED)N/AN/AN/AN/AN/A
    Lamp/Bulb included?N/AN/AN/AN/AN/A
    SDCM＜6＜6＜6＜6＜6
    CRI＞80＞80＞80＞80＞80
    Power Factor>0.5>0.5>0.5>0.5>0.5
    UGR>19>19>19>19>19

    Function

    +
    Code1008.1005.011008.1005.021008.1005.031008.1005.041008.1005.05
    LinkableNNNNN
    CCT functionOptionalOptionalOptionalOptionalOptional
    Multi-section PowerNNNNN
    Dimmable NNNNN
    SensorNNNNN
    EmergencyNNNNN
    Battery Spec.N/AN/AN/AN/AN/A
