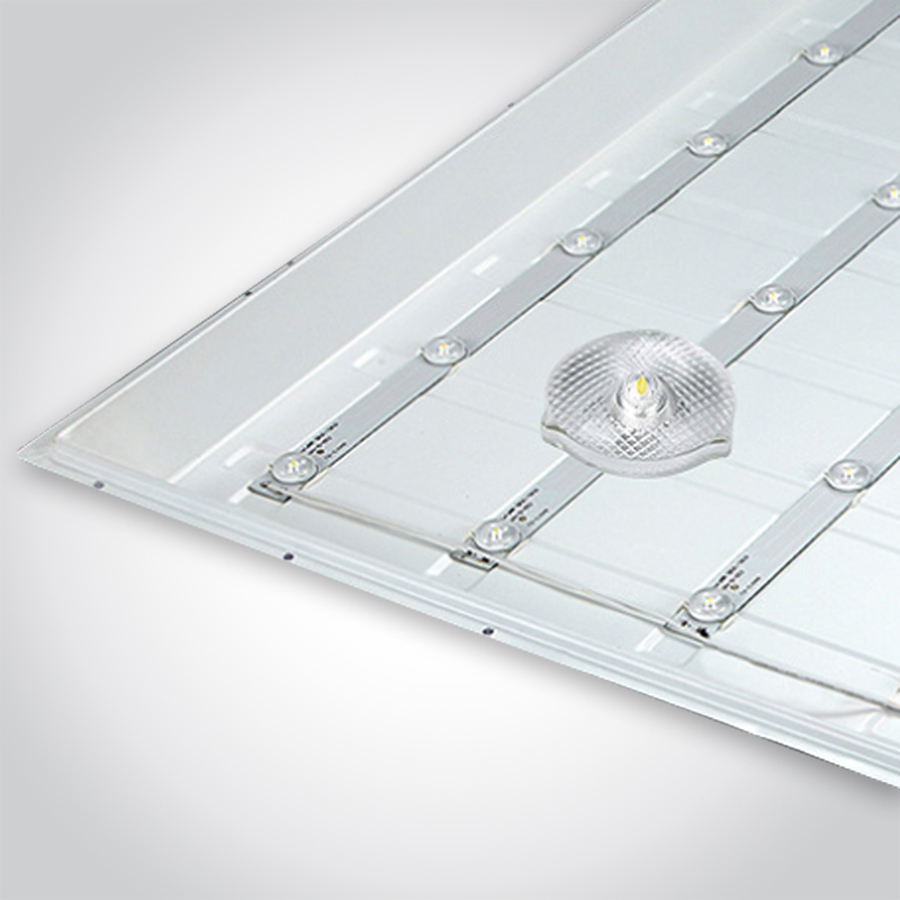

    Panel 1002.1001 Panel 1002.1001

    Panel 1002.1001

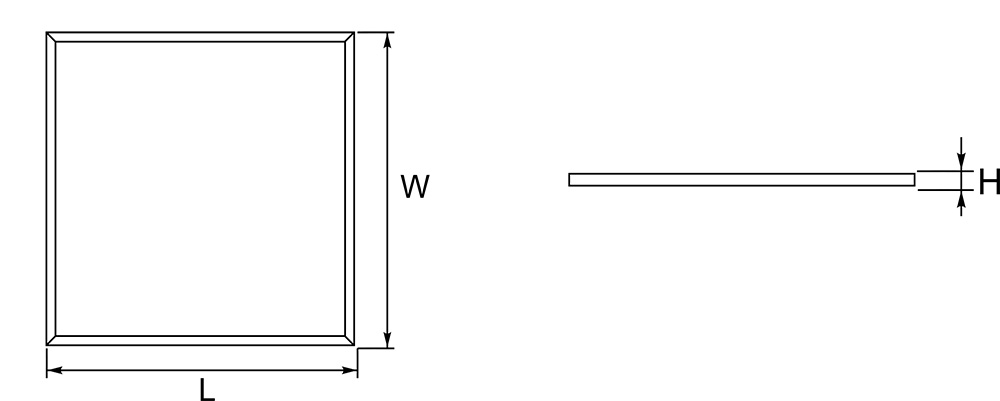

    Line Drawing
    Downloads
    Product PDF Product PDF

    Physical Specification

    +
    Code1002.1001.011002.1001.021002.1001.031002.1001.04
    Product Dimensions (mm)L295×W595×H35mmL295×W1195×H35mmL595×W595×H35mmL595×W1195×H35mm
    Finish/ColorWhiteWhiteWhiteWhite
    MaterialPS+IronPS+IronPS+IronPS+Iron
    On/Off SwitchNNNN
    Cable Length (m)0.160.160.160.16
    Cable Spec.22AWG22AWG22AWG22AWG
    PlugNNNN
    Terminal BlockNNNN
    AccessoriesNNNN
    InstallationRecessed mountedRecessed mountedRecessed mountedRecessed mounted
    Class 2222

    Electrical Characteristics

    +
    Code1002.1001.011002.1001.021002.1001.031002.1001.04
    Total Power Consumption Wattage/On-Mode Power 18363650
    Product Voltage220-240220-240220-240220-240
    Herts50/6050/6050/6050/60
    IP RatingIP20IP20IP20IP20
    Luminous Flux1800360036005000
    Kelvin 3000K/4000K/6000K3000K/4000K/6000K3000K/4000K/6000K3000K/4000K/6000K
    LED Package TypeSMDSMDSMDSMD
    Lamp/Bulb Specification (if not LED)N/AN/AN/AN/A
    Lamp/Bulb included?N/AN/AN/AN/A
    SDCM＜6＜6＜6＜6
    CRI＞80＞80＞80＞80
    Power Factor>0.5>0.9>0.9>0.9
    UGR>19>19>19>19

    Function

    +
    Code1002.1001.011002.1001.021002.1001.031002.1001.04
    LinkableN/AN/AN/AN/A
    CCT functionN/AN/AN/AN/A
    Multi-section Power Optional Optional Optional Optional
    Dimmable OptionalOptionalOptionalOptional
    SensorOptionalOptionalOptionalOptional
    EmergencyOptionalOptionalOptionalOptional
    Battery Spec.N/AN/AN/AN/A
