Products > Work light & Flood light > Flood light 1006.1001

Flood light 1006.1001

Flood light 1006.1001

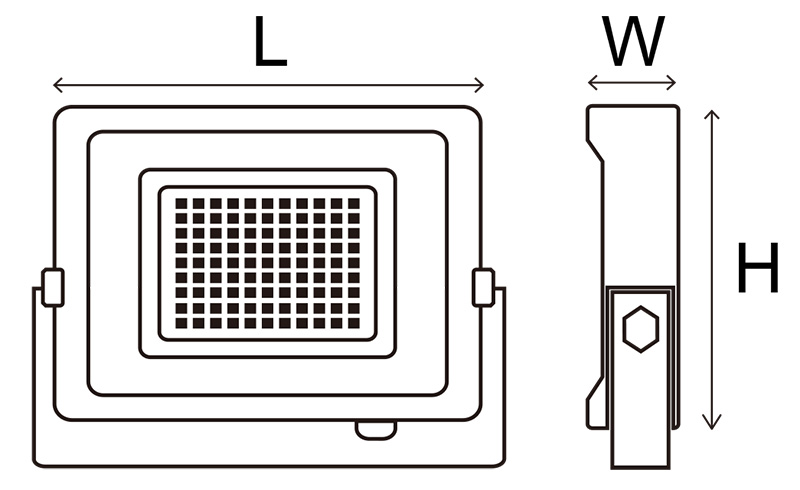

Line Drawing

Downloads

Product PDF

Product PDF

Physical Specification

+

Code	1006.1001.01	1006.1001.02	1006.1001.03	1006.1001.04	1006.1001.05
Product Dimensions (mm)	L135×W25×H115mm	L180×W35×H150mm	L215×W35×H175mm	L235×W40×H195mm	L295×W40×H235mm
Finish/Color	Black	Black	Black	Black	Black
Material	Aluminium+glass+iron	Aluminium+glass+iron	Aluminium+glass+iron	Aluminium+glass+iron	Aluminium+glass+iron
On/Off Switch	N	N	N	N	N
Cable Length (m)	0.3m	0.3m	0.3m	0.3m	0.3m
Cable Spec.	H05RN-F 3x1.0mm2	H05RN-F 3x1.0mm2	H05RN-F 3x1.0mm2	H05RN-F 3x1.0mm2	H05RN-F 3x1.0mm2
Plug	N	N	N	N	N
Terminal Block	N	N	N	N	N
Accessories	N	N	N	N	N
Installation	Surface mounted	Surface mounted	Surface mounted	Surface mounted	Surface mounted
Class	I	I	I	I	I

Electrical Characteristics

+

Code	1006.1001.01	1006.1001.02	1006.1001.03	1006.1001.04	1006.1001.05
Total Power Consumption Wattage/On-Mode Power	10	20	30	50	100
Product Voltage	220-240	220-240	220-240	220-240	220-240
Herts	50/60	50/60	50/60	50/60	50/60
IP Rating	IP65	IP65	IP65	IP65	IP65
Luminous Flux	900	1800	2700	4500	9000
Kelvin	2700K/4000K/6500K	2700K/4000K/6500K	2700K/4000K/6500K	2700K/4000K/6500K	2700K/4000K/6500K
LED Package Type	SMD	SMD	SMD	SMD	SMD
Lamp/Bulb Specification (if not LED)	N/A	N/A	N/A	N/A	N/A
Lamp/Bulb included?	N/A	N/A	N/A	N/A	N/A
SDCM	＜6	＜6	＜6	＜6	＜6
CRI	＞80	＞80	＞80	＞80	＞80
Power Factor	>0.9	>0.9	>0.9	>0.9	>0.9
UGR	>19	>19	>19	>19	>19

Function

+

Code	1006.1001.01	1006.1001.02	1006.1001.03	1006.1001.04	1006.1001.05
Linkable	N/A	N/A	N/A	N/A	N/A
CCT function	N/A	N/A	N/A	N/A	N/A
Multi-section Power	N/A	N/A	N/A	N/A	N/A
Dimmable	N/A	N/A	N/A	N/A	N/A
Sensor	N/A	N/A	N/A	N/A	N/A
Emergency	N/A	N/A	N/A	N/A	N/A
Battery Spec.	N/A	N/A	N/A	N/A	N/A
Others ( Solar etc…)	N/A	N/A	N/A	N/A	N/A
