    Flood light 1006.1004

    Flood light 1006.1004

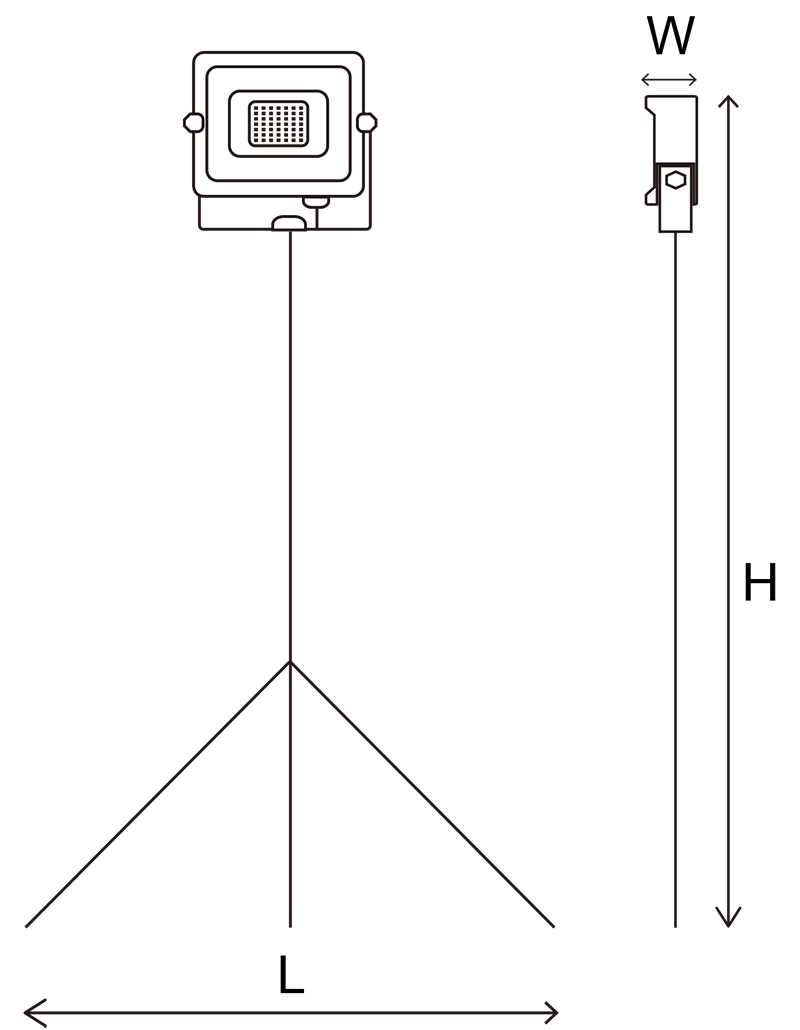

    Line Drawing
    Downloads
    Product PDF Product PDF

    Physical Specification

    +
    Code1006.1004.011006.1004.021006.1004.031006.1004.041006.1004.05
    Product Dimensions (mm)Lamp :L135×W25×H115mm Bracket height ：600-1500mmLamp:L180×W35×H150mm Bracket height :600-1500mmLamp:L215×W35×H175mm Bracket height :600-1500mm Lamp:L235×W40×H195mmBracket height :600-1500mmLamp :L295×W40×H235mm Bracke theight :600-1500mm
    Finish/ColorBlack + YellowBlack + YellowBlack + YellowBlack + YellowBlack + Yellow
    MaterialAluminium+glass+ironAluminium+glass+ironAluminium+glass+ironAluminium+glass+ironAluminium+glass+iron
    On/Off SwitchNNNNN
    Cable Length (m)3m3m3m3m3m
    Cable Spec.H05RN-F 3x1.0mm2H05RN-F 3x1.0mm2H05RN-F 3x1.0mm2H05RN-F 3x1.0mm2H05RN-F 3x1.0mm2
    PlugYYYYY
    Terminal BlockNNNNN
    AccessoriesNNNNN
    InstallationNNNNN
    Class IIIII

    Electrical Characteristics

    +
    Code1006.1004.011006.1004.021006.1004.031006.1004.041006.1004.05
    Total Power Consumption Wattage/On-Mode Power 10203050100
    Product Voltage220-240220-240220-240220-240220-240
    Herts50/6050/6050/6050/6050/60
    IP RatingIP65IP65IP65IP65IP65
    Luminous Flux9001800270045009000
    Kelvin 2700K/4000K/6500K2700K/4000K/6500K2700K/4000K/6500K2700K/4000K/6500K2700K/4000K/6500K
    LED Package TypeSMDSMDSMDSMDSMD
    Lamp/Bulb Specification (if not LED)N/AN/AN/AN/AN/A
    Lamp/Bulb included?N/AN/AN/AN/AN/A
    SDCM＜6＜6＜6＜6＜6
    CRI＞80＞80＞80＞80＞80
    Power Factor>0.9>0.9>0.9>0.9>0.9
    UGR>19>19>19>19>19

    Function

    +
    Code1006.1004.011006.1004.021006.1004.031006.1004.041006.1004.05
    LinkableN/AN/AN/AN/AN/A
    CCT functionN/AN/AN/AN/AN/A
    Multi-section PowerN/AN/AN/AN/AN/A
    Dimmable N/AN/AN/AN/AN/A
    SensorN/AN/AN/AN/AN/A
    EmergencyN/AN/AN/AN/AN/A
    Battery Spec.N/AN/AN/AN/AN/A
    Others ( Solar etc…)N/AN/AN/AN/AN/A
